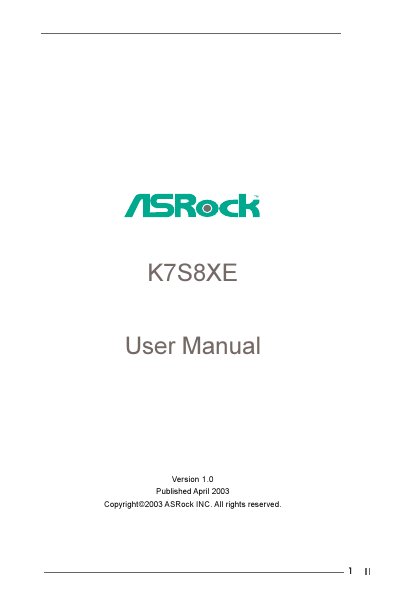

ASRock K7S8XE Motherboard User Manual

This document is the user manual for K7S8XE

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 27
File format: PDF
File size: 402 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: K7S8XE
MD5 checksum: 30944685E5EFD9B3D8D0CC80C3AABE8F
PDF: ASRock K7S8XE Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K7S8XE ATX motherboard, lists the package contents, and details the hardware specifications such as CPU socket, chipset, memory slots, and I/O connectors. It also explains the ASRock I/OTM features and supported operating systems.

Installation instructions cover CPU and heatsink mounting, memory module installation, and jumper settings. The BIOS setup section describes password configuration, power options, and boot device priority, while the software support chapter outlines the included support CD and utilities. This manual is written in Chinese.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup
Software Support
Appendix
Security Menu
Power Menu

Specifications

Form factor	ATX (12.0" x 9.6")
CPU socket	Socket A (462 pins)
Memory slots	3 DDR DIMM slots, max 3 GB DDR1/2/3
USB ports	4 USB 2.0 ports + header for 2 more
LAN	10/100 Ethernet
Audio	5.1‑channel AC’97
BIOS	AMI legal BIOS
Supported OS	Windows 98/ME/2000/XP

Frequently asked questions

How can I set a supervisor password in the BIOS?

Enter the BIOS setup, select the Security Setup menu, choose “Supervisor Password”, press , and enter a 1‑to‑6 character alphanumeric password.

Download PDF (402 KB)
