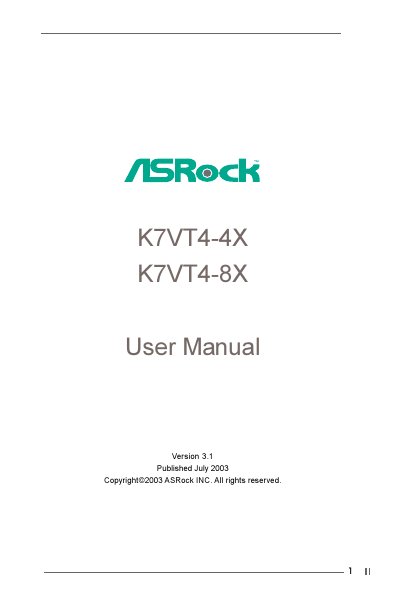

This document is the user manual version 3.1 for K7VT4-4X K7VT4-8X, published by ASRock INC. in July 2003. The document describes the features and characteristics of the product.
This manual introduces the ASRock K7VT4-4X and K7VT4-8X ATX motherboards, covering their features, package contents, and detailed layout diagrams. It also explains the warranty disclaimer and where to obtain updated specifications.
Key sections include product specifications, step‑by‑step installation instructions, BIOS configuration options, software support details, and safety cautions such as CPU overheating protection and prohibited component installations.
| Form factor | ATX (12.0" x 7.0", 30.5 x 17.8 cm) |
|---|---|
| CPU socket | Socket A (462 pins) |
| Memory slots | 2 DDR DIMM slots (DDR1/DDR2), up to 2 GB |
| IDE support | IDE1 and IDE2: ATA 133 / Ultra DMA Mode 6 |
| USB ports | 4 default USB 2.0 ports + header for 2 additional ports |
It supports Socket A with 462 pins.
The board has two DDR DIMM slots that support DDR1 and DDR2 modules up to a total of 2 GB.
No, inserting a 3.3 V AGP card may cause permanent damage.
