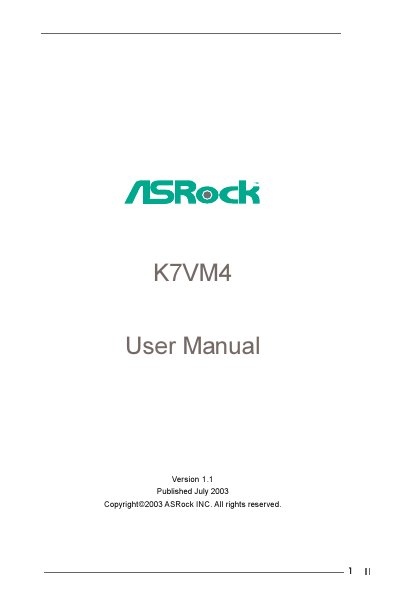

K7VM4 User Manual
This manual introduces the ASRock K7VM4 Micro ATX motherboard, lists the package contents, and details the board layout and I/O connectors. It includes step‑by‑step installation instructions for the CPU, memory, and other components, as well as safety precautions for handling the hardware.
The document also covers BIOS setup options, power management, security settings, and software support, with an appendix that provides advanced BIOS menus and troubleshooting tips. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
| IDE ports | 2 IDE ports (ATA133, Ultra DMA Mode 6) |
| USB ports | 4 rear USB 2.0 ports + header for 2 additional ports |
| LAN | 10/100 Ethernet (802.3u) with Wake‑On‑LAN |
| Audio | 5.1‑channel AC’97 audio |
It uses Socket A (462 pins) and supports AMD Athlon, Athlon XP, and Duron processors.
The board has four rear USB 2.0 ports and a header that can add two more USB 2.0 ports.
The system will automatically shut down; ensure the CPU fan is working and apply thermal grease between the CPU and heatsink.
No, inserting a 3.3 V AGP card may cause permanent damage.
