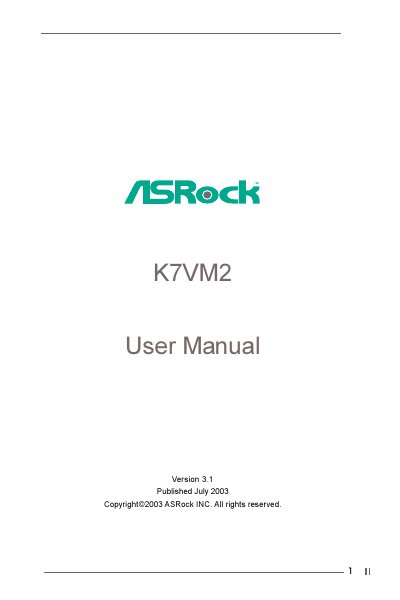

This manual introduces the ASRock K7VM2 Micro ATX motherboard, lists the package contents, and details the hardware specifications such as CPU socket, chipset, memory support and I/O connectors. It also explains the layout of the board and the ASRock I/OTM features.
Installation instructions cover screw placement, pre‑installation precautions, CPU and heatsink mounting, memory module installation, and expansion slot usage. Subsequent sections guide users through BIOS setup, security options, power management, boot configuration, and exiting the BIOS utility. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 7.5") |
|---|---|
| CPU socket | Socket A (462 pins) |
| Chipset | North Bridge VIA KM266, South Bridge VIA VT8235 |
| Memory slots | 2 DDR DIMM slots (DDR1 and DDR2) |
| Maximum memory | 2 GB |
| USB 2.0 ports | 4 rear ports + header for 2 additional ports |
| LAN | 10/100 Ethernet (802.3u) |
| Audio | 2‑channel AC’97 |
It supports Socket A with 462 pins.
The board has four rear USB 2.0 ports and a header that can add two more ports.
The motherboard can hold up to 2 GB of DDR memory across its two slots.
Select the Supervisor Password field, press
