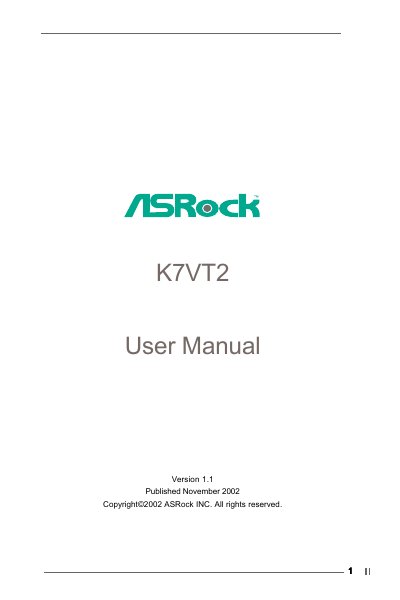

This document is the user manual for the K7VT2 motherboard produced by ASRock INC. It describes the features and characteristics of the motherboard.
This manual introduces the ASRock K7VT2 ATX motherboard, outlines the package contents, and guides users through step‑by‑step installation of CPU, memory, and expansion cards. It also covers safety precautions and handling instructions.
Further sections detail BIOS configuration, power‑management options, and software support, including the use of the support CD and driver utilities. An appendix provides advanced BIOS features for experienced users.
| Form factor | ATX (12" x 9.6", 30.5 x 24.4 cm) |
|---|---|
| CPU socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
| North Bridge chipset | VIA KT266A, FSB@200/266MHz, AGP 4X |
| South Bridge features | USB 2.0, ATA 133 |
| Memory slots | 2 DDR slots (PC1600/PC2100, max 2 GB) and 2 SDR slots (PC100/PC133, max 2 GB) |
| IDE ports | 2 IDE connectors, ATA 133 Ultra DMA Mode 6, up to 4 devices |
| Audio | 2‑channel AC’97 |
| LAN | 10/100 Ethernet with Wake‑On‑LAN |
| USB ports | 4 rear USB 2.0 ports plus header for two additional ports |
| Expansion slots | 5 PCI slots, 1 AGP slot, 1 optional AMR slot |
It provides five PCI slots.
The board uses a Socket A (462‑pin) socket for AMD Athlon, Athlon XP, and Duron CPUs.
There are four rear USB 2.0 ports.
No, only one type of DIMM (either DDR or SDRAM) may be installed at a time.
