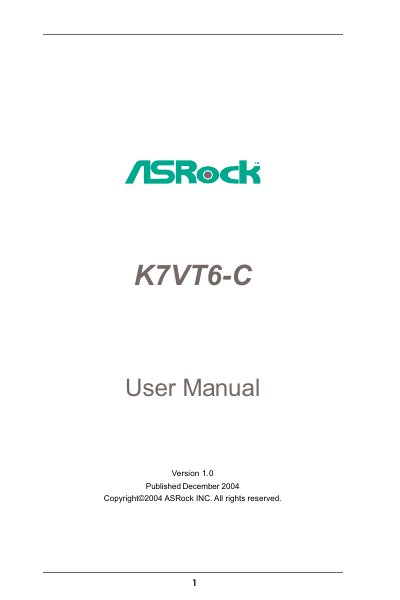

ASRock K7VT6-C Motherboard User Manual

ASRock K7VT6-C User Manual, including copyright notice and disclaimer.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 30
File format: PDF
File size: 461 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: K7VT6-C, K7VT6
MD5 checksum: 46AF0F71A575E488181CF38283B4E9BF
PDF: ASRock K7VT6-C Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K7VT6-C ATX motherboard, its package contents, and key specifications. It also explains the ASRock I/O Plus™ connectors and overall layout.

The document guides users through CPU, memory, and peripheral installation, BIOS configuration, security and power settings, as well as software support and troubleshooting tips. This manual is written in Chinese.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup
Software Support
Security Setup Menu
Power Setup Menu
Boot Setup Menu

Specifications

Form Factor	ATX (12.0‑in x 7.0‑in)
CPU Socket	Socket A (462 pins)
Supported CPUs	AMD Athlon, Athlon XP, Duron, Sempron
Memory Slots	2 DDR DIMM slots, max 2 GB
IDE Ports	2 IDE ports, ATA133
USB Ports	6 USB 2.0 ports
LAN	10/100 Ethernet
Audio	5.1‑channel AC’97 audio

Frequently asked questions

How many USB 2.0 ports does the K7VT6-C motherboard have?

The motherboard provides six USB 2.0 ports.

What should be done if the CPU overheats?

The system will automatically shut down; you should check the CPU fan, re‑apply thermal grease, and ensure proper cooling before restarting.

How can a supervisor password be set in the BIOS?

Press on the Supervisor Password field and enter a 1‑to‑6 character alphanumeric password.
