This manual introduces the features and usage of K7VT6 motherboard

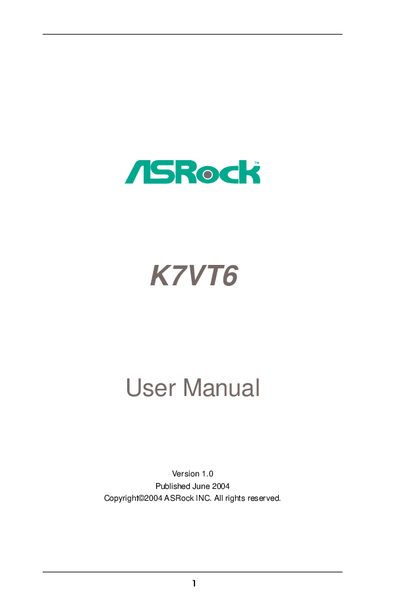

This manual introduces the ASRock K7VT6 ATX motherboard, outlines the package contents, and describes its key features and design. It also explains how to install the CPU, memory, storage devices, and other components, and provides detailed BIOS setup instructions.
Additional sections cover software support, advanced BIOS options, and troubleshooting, with appendices that list jumper settings, connector pinouts, and BIOS boot options.
| Form Factor | ATX (12.0‑in x 7.0‑in) |
|---|---|
| CPU Socket | Socket A (462 pins) – supports AMD Athlon, Athlon XP, Duron |
| Chipset | North Bridge VIA KT600, South Bridge VIA VT8237 |
| SATA | 2 SATA connectors, 1.5 Gb/s data transfer rate |
| USB 2.0 Ports | 8 ports (6 rear, 2 via on‑board header) |
| Expansion Slots | 5 PCI slots (PCI 2.2) and 1 AGP slot (1.5 V, 8X/4X) |
| Audio | 5.1‑channel AC’97 audio |
| LAN | 10/100 Ethernet with Wake‑On‑LAN |
It supports Socket A (462‑pin) processors, including AMD Athlon, Athlon XP, and Duron CPUs.
The board offers eight USB 2.0 ports – six on the rear panel and two additional ports via an on‑board header.
It is an ATX‑form factor board measuring 12.0 in × 7.0 in (30.5 cm × 17.8 cm).
