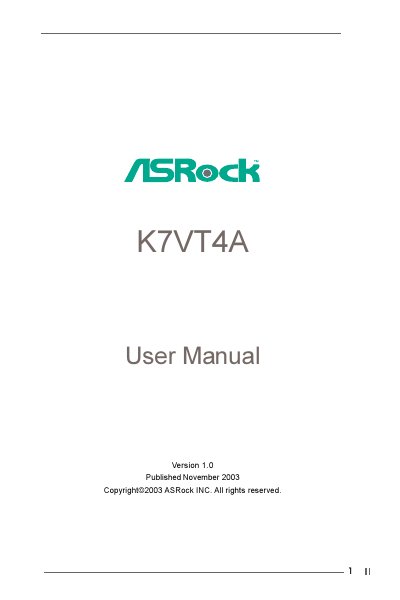

ASRock K7VT4A Motherboard User Manual

This is a user manual for K7VT4A product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 29
File format: PDF
File size: 580 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: K7VT4A
MD5 checksum: 17FAB0E367D65735EA2B66B258F8EBD0
PDF: ASRock K7VT4A Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K7VT4A ATX motherboard, covering package contents, detailed specifications, layout diagrams, and the I/O shield. It guides users through installation procedures such as CPU, memory, and expansion card mounting, as well as pre‑installation safety precautions.

The document also explains BIOS configuration, power management, security settings, and software support, including driver installation from the supplied support CD. Appendices list advanced BIOS menus and troubleshooting tips. This manual is written in Chinese.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
CPU Installation
Memory Installation
BIOS Setup
Software Support
Appendix

Specifications

CPU Socket	Socket A (462 pins) for AMD Athlon/XP/Duron
IDE Ports	2 IDE ports, ATA133 Ultra DMA6
USB Ports	6 USB 2.0 ports
LAN	10/100 Ethernet
Audio	5.1‑channel AC’97 audio
BIOS	AMI legal BIOS, ACPI 1.1 compliant

Frequently asked questions

What happens if the CPU overheats?

The system will automatically shut down to protect the CPU.

How many USB 2.0 ports are available on the K7VT4A motherboard?

The motherboard provides six USB 2.0 ports.
