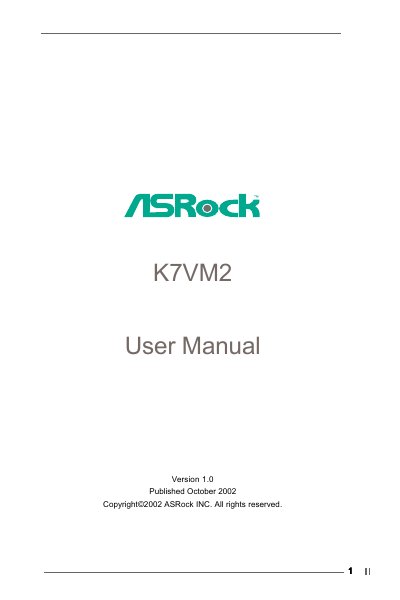

This manual describes the features and functions of the K7VM2 motherboard.
This manual introduces the ASRock K7VM2 motherboard, a Micro ATX board designed for AMD Socket A processors. It includes an overview of the product, package contents, and detailed specifications.
The document guides users through installation steps, BIOS configuration, software support, and troubleshooting. It also contains an appendix with advanced BIOS settings and reference tables for connectors and expansion slots.
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
| North Bridge chipset | VIA KM266, FSB@200/266 MHz, AGP 4X |
| South Bridge chipset | Supports USB 2.0, ATA 133 |
| DDR memory slots | 2 slots, PC1600/PC2100, max 2 GB |
| SDR memory slots | 2 slots, PC100/PC133, max 2 GB |
| IDE ports | IDE1: ATA 133 / Ultra DMA Mode 4 |
| USB ports | 4 rear USB 2.0 ports + header for 2 more |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN supported |
| Audio | 2‑channel AC’97 audio |
| BIOS | AMI legal BIOS, ACPI 1.1, Plug‑and‑Play |
The K7VM2 motherboard provides three PCI slots.
