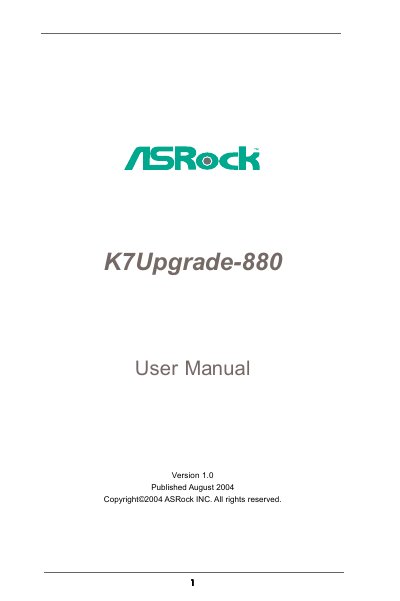

This document is the user manual for the K7Upgrade-880, published by ASRock INC. in August 2004. It provides detailed specifications and information about the product. The K7Upgrade-880 is a motherboard with specific features and performance.
This manual guides users through installing the ASRock K7Upgrade-880 ATX motherboard, including pre‑installation precautions, component placement, and cable connections. Detailed sections cover CPU, memory, expansion slots, and SATA/IDE configurations.
Later chapters describe the AMI BIOS setup utility, hardware health monitoring, and software support, including driver installation from the supplied support CD. Safety warnings and troubleshooting tips are also included.
| Form Factor | ATX (12.0‑in x 8.5‑in) |
|---|---|
| CPU Socket | 462‑Pin socket supporting AMD Athlon/XP/Duron and Sempron |
| Memory Slots | 4 DDR DIMM slots, DDR1/DDR2/DDR3/DDR4, max 4 GB |
| LAN | 10/100 Ethernet (RJ‑45) |
It uses a 462‑Pin socket that supports AMD Athlon, Athlon XP, Duron, and 32‑bit Sempron processors.
It is an ATX form factor measuring 12.0 inches by 8.5 inches.
The motherboard includes two SATA connectors supporting 1.5 Gb/s data transfer.
