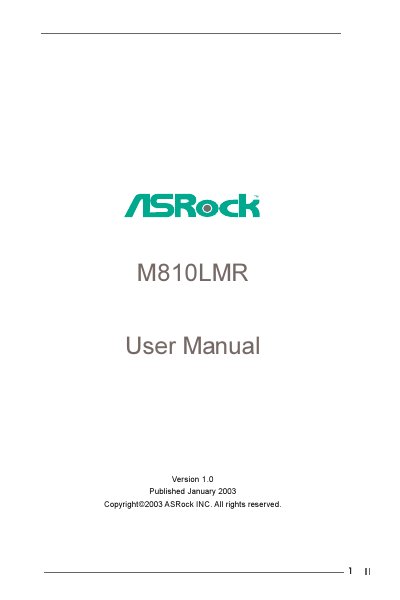

This document is the user manual for ASRock M810LMR motherboard, describing the features and characteristics of the product.
This ASRock M810LMR motherboard user manual introduces the product, lists the package contents, and details the technical specifications and board layout. It is intended for DIY system builders and advanced users who need reference information for configuration and maintenance.
Key sections cover step‑by‑step installation of the CPU, memory, and expansion cards, jumper settings, BIOS setup utilities, and software support. The appendix offers additional BIOS options and troubleshooting guidance.
| Form factor | Micro ATX (9.6" x 7.0", 24.4 x 17.8 cm) |
|---|---|
| CPU socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
| Memory | 2 DIMM slots (PC100/PC133), max 1 GB |
| IDE ports | 2 IDE connectors, ATA100 Ultra DMA Mode 5, up to 4 devices |
| Audio | 2‑channel AC’97 |
| LAN | 10/100 Ethernet with Wake‑On‑LAN |
| PCI slots | 2 PCI 2.1 slots |
| AMR slot | 1 AMR slot (optional MR card) |
| USB ports | 4 rear USB 1.1 ports |
The board provides two 168‑pin SDRAM DIMM slots that support PC100/PC133 modules up to a total of 1 GB.
It uses a Socket A (462‑pin) socket compatible with AMD Athlon, Athlon XP, and Duron processors.
The motherboard includes two PCI slots that conform to the PCI 2.1 specification.
