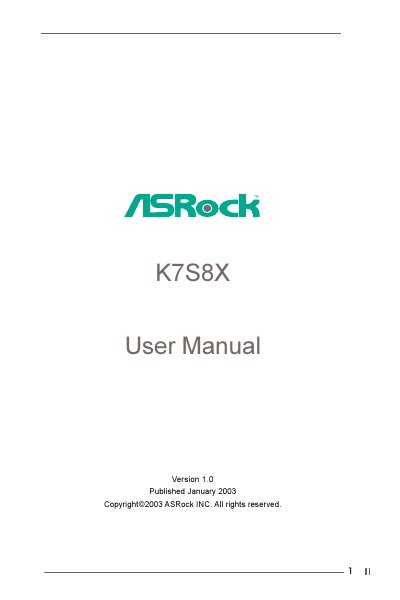

ASRock K7S8X Motherboard User Manual

This manual provides information on the K7S8X motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 26
File format: PDF
File size: 399 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: K7S8X
MD5 checksum: D2544AA134E6046339F89E72C9C5CFEC
PDF: ASRock K7S8X Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K7S8X ATX motherboard, lists the package contents, and details the board layout, connectors, and supported components. It also covers step‑by‑step installation procedures, BIOS configuration, and software support.

Additional sections describe advanced BIOS options, security settings, power management, and troubleshooting tips, with an appendix offering deeper BIOS information for experienced users.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
ASRock I/OTM
Installation
BIOS Setup
Software Support
Appendix

Specifications

Form factor	ATX (12" x 9.6")
CPU socket	Socket A (462 pins)
USB ports	4 rear USB 2.0 ports + header for 2 additional ports
LAN	10/100 Ethernet (802.3u)
Audio	5.1‑channel AC’97

Frequently asked questions

What type of CPU socket does the K7S8X motherboard use?

It uses a Socket A (462‑pin) CPU socket.

How many USB 2.0 ports are provided on the K7S8X motherboard?

The board has four rear USB 2.0 ports and a header that can add two more ports.

What is the form factor of the K7S8X motherboard?

It is an ATX form factor measuring 12" x 9.6".

Download PDF (399 KB)
