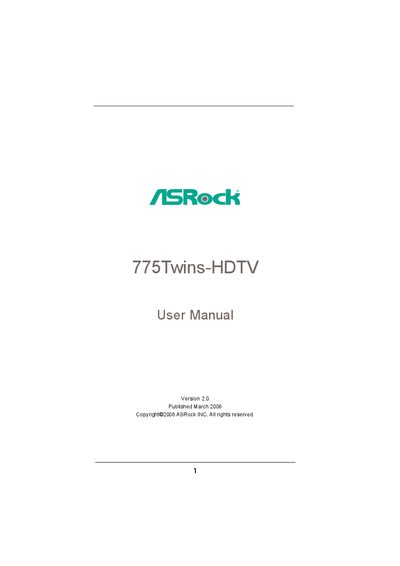

This is a user manual for ASRock INC's 775Twins-HDTV, published in March 2006. The manual provides detailed information about the features and characteristics of the product.
This manual covers the ASRock 775Twins‑HDTV motherboard, a Micro ATX board with LGA775 socket. It includes package contents, hardware requirements, and detailed installation steps for CPU, memory, storage, and peripherals.
The guide also explains BIOS configuration, hardware health monitoring, and software support, including driver installation from the supplied support CD. Safety cautions and FCC compliance information are provided throughout.
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Dual Core Pentium, Pentium D, Pentium 4, Celeron D |
| FSB Speeds | 1066/800/533 MHz |
| Chipset | Northbridge: ATI Radeon Xpress 200, Southbridge: ULi 1573 |
| Maximum Memory | 4 GB |
| Expansion Slots | 2× PCI, 1× PCI‑E x16, 1× PCI‑E x1, 1× HDMR |
| Audio Codec | Realtek ALC883 7.1‑channel |
| LAN | Realtek RTL8201CL, 10/100 Mb Ethernet, Wake‑On‑LAN |
It supports Intel LGA775 processors including Dual Core Pentium, Pentium D, Pentium 4 and Celeron D.
The board can hold up to 4 GB of RAM.
There are four USB 2.0 ports on the rear I/O panel.
It is a Micro ATX board measuring 9.6 in × 9.6 in.
