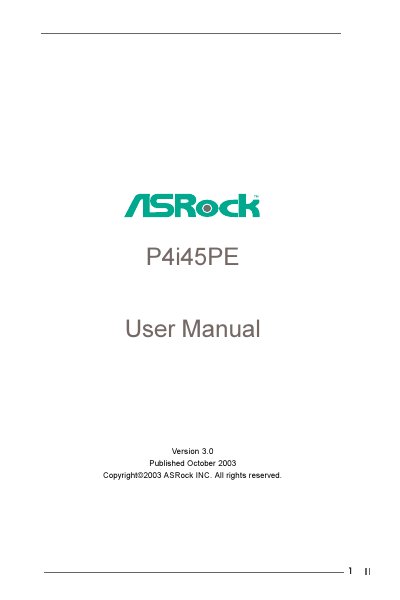

ASRock P4i45PE Motherboard User Manual

This manual is the user manual of P4i45PE motherboard, including motherboard specifications, installation instructions, usage instructions, etc.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 30
File format: PDF
File size: 736 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: P4I45PE
MD5 checksum: 21C7AE88BA2DD7D22416BDD2120D9449
PDF: ASRock P4i45PE Motherboard User Manual PDF

About this manual

This manual introduces the ASRock P4i45PE ATX motherboard, its package contents, and key features such as the Intel 845PE north bridge, ICH4 south bridge, and support for Pentium 4/Celeron processors. It also lists the supported memory types, expansion slots, and I/O connectors.

The document guides users through installation, BIOS configuration, and software support, including detailed BIOS menus for security, power, and boot options. Appendices provide advanced BIOS settings and troubleshooting information.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
BIOS Setup
Software Support
Security Setup Menu
Power Setup Menu
Boot Setup Menu

Specifications

Form Factor	ATX (12.0‑in x 7.0‑in)
CPU Socket	Socket 478 for Intel Pentium 4 / Celeron
Memory Support	2 DDR DIMM slots, DDR1/DDR2 PC2100‑PC2700, max 2 GB
IDE Ports	2 IDE connectors, ATA 100 / Ultra DMA Mode 5
USB Ports	4 USB 2.0 ports (plus header for 2 more)
Audio	5.1‑channel AC’97 audio
LAN	10/100 Ethernet, Wake‑On‑LAN support

Frequently asked questions

What is the maximum CPU front side bus frequency supported by the P4i45PE?

The motherboard can operate up to 800 MHz FSB in over‑clocking mode.

How many USB 2.0 ports are available on the board?

Four USB 2.0 ports are provided on the rear panel, with a header for two additional ports.

What types of memory modules can be installed?

The board accepts DDR1 and DDR2 modules (PC2100/PC2700), up to a total of 2 GB.
