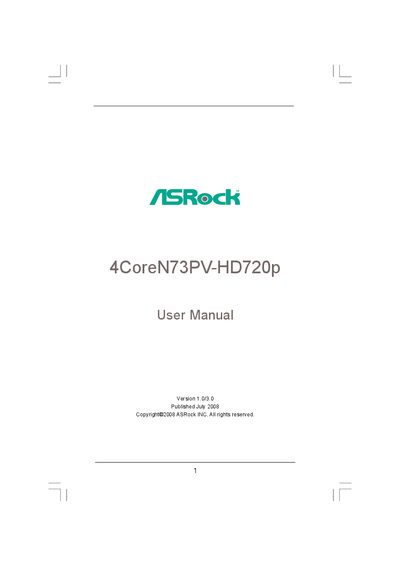

ASRock 4CoreN73PV-HD720p Motherboard User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 162
File format: PDF
File size: 1.7 MB
Published: 15 March, 2012
Updated: 29 September, 2023
Model: 4COREN73PV-HD720P
MD5 checksum: E98D46DB6C21C14840E43275CA07B171
PDF: ASRock 4CoreN73PV-HD720p Motherboard User Manual PDF

About this manual

This manual introduces the ASRock 4CoreN73PV‑HD720p motherboard, covering package contents, hardware installation steps, and BIOS configuration. It also details supported operating systems, driver installation, and troubleshooting tips.

The document includes a full specifications table, connector descriptions, and safety warnings, helping users assemble the system, configure RAID, and enable HD‑720p Blu‑ray playback.

What's inside

Introduction
Package Contents
Specifications
Hardware Installation
BIOS Setup Utility
Software Support
Connector and I/O Overview
Overclocking and Safety Notices
Support CD and Driver Installation

Specifications

Form Factor	Micro ATX (9.6‑in x 8.0‑in)
CPU Socket	LGA 775
Supported Chipset	NVIDIA GeForce 7100 / nForce 630i
Audio Codec	ALC662 5.1‑channel HD Audio
Expansion Slots	1× PCI‑Express x16, 1× PCI‑Express x1, 2× PCI

Frequently asked questions

Which Windows operating systems are supported by this motherboard?

The motherboard supports Microsoft Windows XP, Windows XP 64‑bit, Windows Vista and Windows Vista 64‑bit.

What is the maximum amount of system memory this board can handle?

The maximum system memory capacity is 4 GB.

Does the board provide RAID functionality for SATA drives?

Yes, the four SATAII connectors support RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5, as well as NCQ, AHCI and Hot‑Plug.
