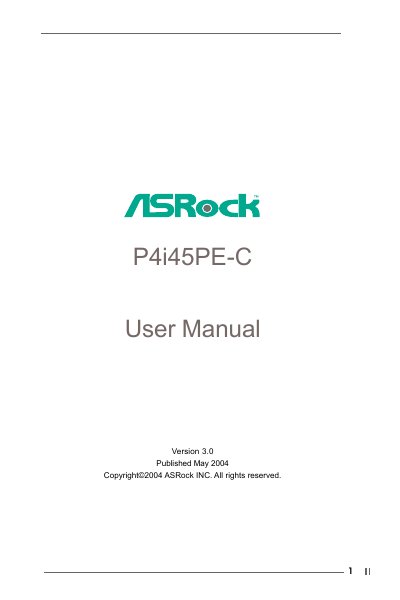

P4i45PE-C User Manual, introduces the features and characteristics of the product
This manual introduces the ASRock P4i45PE-C ATX motherboard, outlines its package contents, specifications, and layout, and guides users through installation, BIOS configuration, and software support. It also includes an appendix with advanced BIOS options and security settings.
The document is organized into sections covering an introduction, detailed specifications, step‑by‑step installation procedures, BIOS setup menus, software support details, and a comprehensive appendix for power, security, and boot options.
| Form Factor | ATX (12.0‑in x 7.0‑in, 30.5 cm x 17.8 cm) |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 / Celeron |
| IDE Ports | 2 IDE ports, ATA 100 / Ultra DMA Mode 5, up to 4 devices |
| USB 2.0 Ports | 4 default ports + header for 2 additional ports |
| LAN | 10/100 Ethernet (802.3u) |
| Audio | 5.1‑channel AC’97 audio |
| BIOS | AMI legal BIOS with ACPI 1.1 support |
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The board provides four default USB 2.0 ports and a header for two additional ports.
