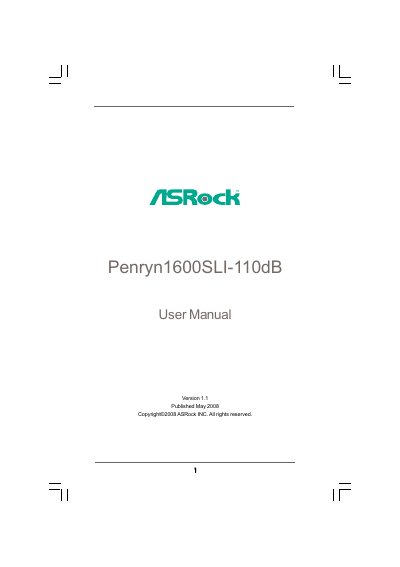

This document is the user manual for ASRock INC.'s 11111 Penryn1600SLI-110dB, version 1.1, published in May 2008. The manual provides specifications and information about the product, but does not constitute any commitment by ASRock.
This manual covers the complete hardware installation process for the ASRock Penryn1600SLI-110dB ATX motherboard, including CPU, memory, storage, and expansion slot guidance. It also details BIOS configuration options, overclocking features, and supported operating systems.
Additional sections describe the support CD contents, driver installation, and troubleshooting tips, along with regulatory and safety notices for the lithium battery and FCC compliance. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 9.0‑in, 30.5 cm x 22.9 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Maximum Memory Capacity | 8 GB |
| SATA Connectors | 4 × SATAII 3.0 Gb/s |
| Audio Codec | ALC890, 110 dB dynamic range |
| LAN Controller | Realtek RTL8211B Gigabit Ethernet |
It uses an LGA 775 socket for Intel Core 2 and compatible processors.
The motherboard supports up to 8 GB of DDR2 memory.
There are four SATAII 3.0 Gb/s connectors.
Yes, it supports NVIDIA SLITM (SLI) mode on the designated PCI‑Express slots.
