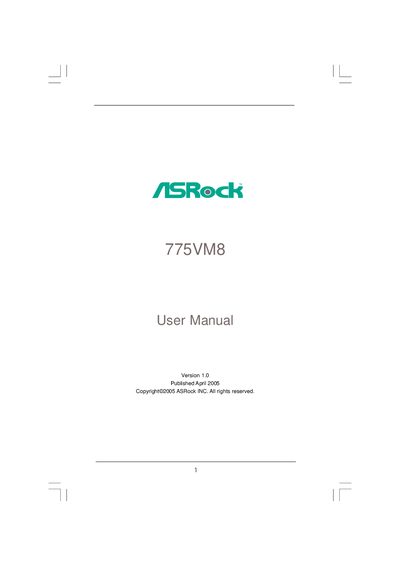

ASRock 775VM8 User Manual, Introduces the features and characteristics of the product.
This manual introduces the ASRock 775VM8 Micro ATX motherboard, detailing its package contents, hardware layout, and key features. It guides users through CPU, memory, and storage installation, as well as BIOS configuration and system setup.
Later sections cover software support, including the supplied Support CD, driver installation, and a live demo for LGA‑775 CPU installation. The document also lists supported Windows operating systems and provides troubleshooting tips.
| Form Factor | Micro ATX (9.6‑in x 8.2‑in) |
|---|---|
| CPU Socket | 775‑Pin LGA socket, supports Intel Pentium 4 / Celeron |
| Memory | 2 DDR DIMM slots (DDR1/DDR2), up to 2 GB |
| SATA Connectors | 2 SATA ports, 1.5 Gb/s transfer rate |
| USB Ports | 8 USB 2.0 ports (6 rear, 2 via headers) |
| LAN | 10/100 Mbps Ethernet (802.3u) |
It supports Microsoft Windows 98 SE, ME, 2000 and XP.
The board provides eight USB 2.0 ports – six on the rear panel and two via on‑board headers.
It is a Micro ATX board measuring 9.6 inches by 8.2 inches (24.4 cm × 20.8 cm).
There are two DDR DIMM slots that accept DDR1 or DDR2 modules, up to a total of 2 GB.
