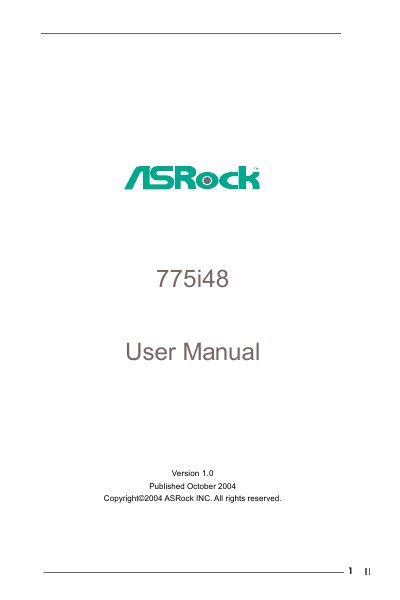

This manual introduces the features and characteristics of the 775i48 motherboard, installation, setup, and usage methods.
This manual guides users through the installation, configuration, and operation of the ASRock 775i48 ATX motherboard. It includes safety precautions, package contents, and detailed hardware layout diagrams.
The document also covers BIOS setup utilities, boot and security settings, as well as software support with drivers and utilities on the included support CD. Technical specifications such as CPU socket, chipset, memory limits, and expansion slots are listed for reference.
| CPU Socket | 775‑Pin socket supporting Intel Pentium 4 / Celeron |
|---|---|
| North Bridge Chipset | Intel 848P |
| South Bridge Chipset | Intel ICH5 |
| Memory | 2 DDR DIMM slots, DDR1/DDR2, up to 2 GB |
| IDE Ports | 2 ports, ATA 100 Ultra DMA5 |
| Serial ATA | Supports up to 2 SATA devices at 1.5 Gb/s |
| Audio | 5.1‑channel AC’97 |
| LAN | 10/100 Mbps Ethernet |
| USB 2.0 Ports | 8 ports |
It provides eight USB 2.0 ports.
The board uses a 775‑Pin socket that supports Intel Pentium 4 and Celeron processors.
Yes, it supports up to two SATA devices at 1.5 Gb/s.
