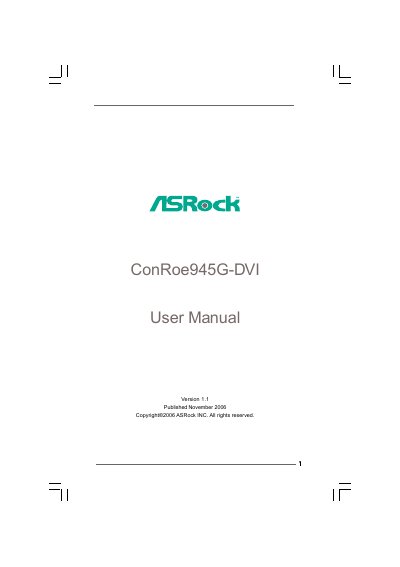

This document is the user manual for ConRoe945G-DVI published by ASRock INC. It provides specifications and information about the product, as well as highlights the features and characteristics of ASRock's products.
This manual introduces the ASRock ConRoe945G-DVI motherboard, its package contents, and key features such as the Intel 945G chipset, LGA 775 CPU socket, and dual‑channel DDRII memory support. It also outlines safety notices, warranty information, and compliance statements.
The guide walks users through hardware installation steps, BIOS configuration, and software support, including driver installation from the supplied support CD. Detailed diagrams of the motherboard layout, connector pin‑outs, and BIOS screens help users set up and troubleshoot the system. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6 in x 9.6 in) |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Intel 945G (Northbridge) / Intel ICH7 (Southbridge) |
| Audio Codec | Realtek ALC888 7.1‑channel |
| LAN | Gigabit Ethernet Realtek RTL8111B |
| Expansion Slots | 2 x PCI, 1 x PCI‑Express x16, 1 x PCI‑Express x1, 1 x HDMR |
| SATA Connectors | 4 x SATAII 3.0 Gb/s (no RAID, no Hot Plug) |
It uses an LGA 775 socket for Intel CPUs.
It provides dual VGA output with a DVI‑D port and a D‑Sub (VGA) port using the Intel GMA 950.
Yes, it includes a Realtek RTL8111B Gigabit Ethernet controller supporting 10/100/1000 Mb/s.
