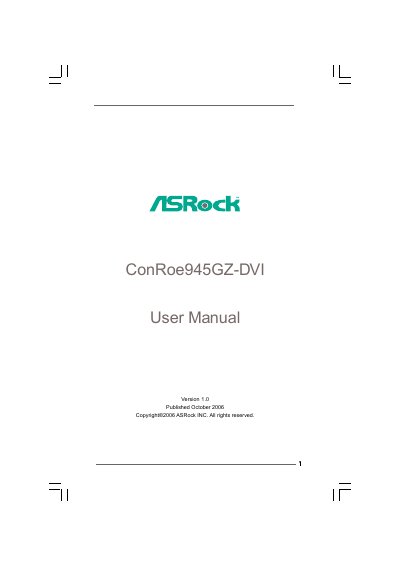

ASRock ConRoe945GZ-DVI Motherboard User Manual

ConRoe945GZ-DVI User Manual, Describe the features and characteristics of the ConRoe945GZ-DVI products.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 43
File format: PDF
File size: 351 KB
Published: 15 March, 2012
Updated: 01 October, 2023
MD5 checksum: A1C19F0EA9426975DF34A2762325DA44
PDF: ASRock ConRoe945GZ-DVI Motherboard User Manual PDF

About this manual

The ASRock ConRoe945GZ-DVI motherboard manual introduces the product, lists package contents, and details the technical specifications such as CPU socket, chipset, memory support, and expansion slots. It also includes safety notices and regulatory compliance information.

The guide walks users through hardware installation, BIOS configuration, and software support, including driver installation from the supplied support CD. Additional sections cover BIOS features, hardware health monitoring, and troubleshooting tips.

What's inside

Introduction
Installation
BIOS Setup Utility
Software Support
Hardware Health Event Monitoring
Boot Screen
Security Screen
Exit Screen

Specifications

Form Factor	Micro ATX (9.6‑in x 8.8‑in)
CPU Socket	LGA 775
Chipset	Northbridge Intel 945GZ, Southbridge Intel ICH7
Audio	7.1‑channel HD Audio (ALC888 codec)
LAN	Realtek PCI LAN 8101L, 10/100 Ethernet
BIOS	4 Mb AMI BIOS

Frequently asked questions

What type of BIOS does the motherboard use?

It uses a 4 Mb AMI BIOS.

How many SATAII connectors are provided?

The board includes four SATAII 3.0 Gb/s connectors.

Which Windows operating systems are supported?

It supports Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
