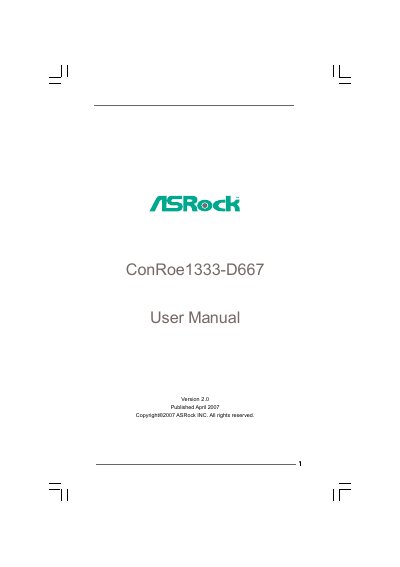

ConRoe1333-D667 User Manual
This manual introduces the ASRock ConRoe1333-D667 motherboard, its package contents, and key specifications such as supported CPUs, memory types, and expansion slots. It also includes a step‑by‑step hardware installation guide covering CPU, memory, heatsink, and connector installation.
Later sections cover the BIOS Setup Utility with detailed explanations of each menu, as well as software support information, driver installation, and troubleshooting tips. The document ends with contact information and warranty notices.
| Form Factor | Micro ATX (9.6 in x 9.6 in) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPU Families | Intel Dual Core, Core 2 Duo, Pentium D, Pentium Dual Core, Pentium 4, Celeron, Celeron D (FSB 1333/1066/800/533 MHz) |
| Maximum Memory Capacity | 4 GB |
| Expansion Slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI, 1 × HDMR |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Gigabit Ethernet (Realtek RTL8111B) |
| SATA Connectors | 4 × SATAII 3.0 Gb/s (no RAID, no Hot Plug) |
It uses a Micro ATX form factor measuring 9.6 in × 9.6 in (24.4 cm × 24.4 cm).
The motherboard provides four SATAII 3.0 Gb/s connectors.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
