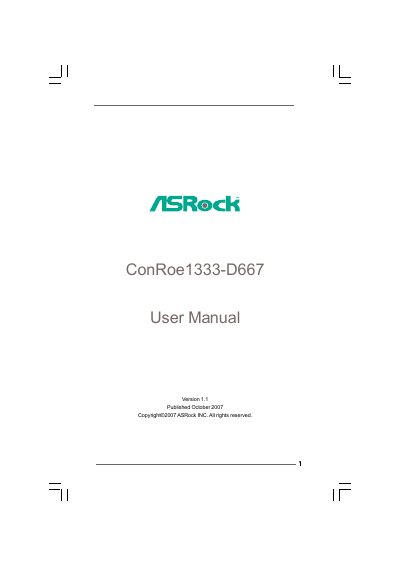

This document is the user manual for the ConRoe1333-D667 motherboard, published by ASRock INC. in October 2007, version 1.1. The manual provides detailed specifications and information about the product, as well as instructions and precautions for use.
This manual introduces the ASRock ConRoe1333-D667 motherboard, covering its specifications, hardware layout, and step‑by‑step installation procedures for CPU, memory, and expansion cards. It also explains BIOS configuration, including boot settings, security options, and hardware health monitoring.
Additional sections describe supported operating systems, driver and utility installation from the Support CD, and safety warnings such as over‑clocking risks and proper disposal of the lithium battery. The document ends with contact information for technical support. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 9.0") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Dual Core, Core2 Duo, Pentium Dual Core, Celeron D (FSB1333/1066/800/533) |
| Memory Type | DDRII (Dual Channel) |
| Maximum Memory Capacity | 4 GB |
| PCI Express x16 Slots | 1 |
| PCI Slots | 2 |
| Graphics Chipset | Intel Graphics Media Accelerator 950 |
| Audio Codec | ALC888 |
| LAN Controller | Realtek 8101E (10/100 Ethernet) |
| SATAII Connectors | 4 |
| BIOS | 4 Mb AMI BIOS |
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
The board provides four SATAII 3.0 Gb/s connectors.
It can accommodate up to 4 GB of DDRII memory.
The motherboard uses an LGA 775 socket.
