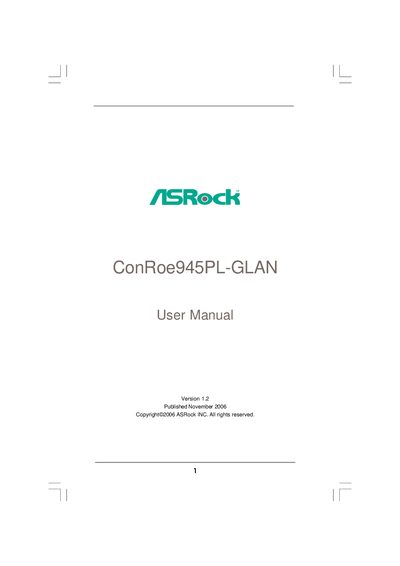

This document is the user manual for the ConRoe945PL-GLAN motherboard by ASRock. It provides instructions on how to use the motherboard and highlights its features and characteristics.
This manual introduces the ASRock ConRoe945PL-GLAN motherboard, lists package contents, and details hardware specifications such as the LGA 775 CPU socket, Intel 945PL northbridge, and dual‑channel DDRII memory. It also covers safety notices, over‑clocking warnings, and regulatory compliance.
The guide walks users through step‑by‑step installation of the CPU, memory modules, expansion cards, and SATA/IDE devices, followed by BIOS configuration, boot options, and software support using the included support CD. Contact information and a link to the ASRock website are provided for driver updates and additional resources.
| CPU socket | LGA 775 |
|---|---|
| Northbridge chipset | Intel 945PL |
| Southbridge chipset | Intel ICH7 |
| Memory type | DDRII, dual‑channel |
| Maximum memory capacity | 2 GB |
| SATAII connectors | 4 × 3.0 Gb/s |
| PCI Express x16 slots | 1 |
| Audio codec | Realtek ALC888 7.1‑channel |
| LAN | Gigabit 10/100/1000 Mb/s |
It uses an LGA 775 socket compatible with Intel Core 2 Duo, Pentium D, Pentium 4, and Celeron D processors.
The motherboard provides four SATAII 3.0 Gb/s connectors.
It supports up to 2 GB of DDRII memory.
The board includes a Realtek ALC888 7.1‑channel audio codec.
