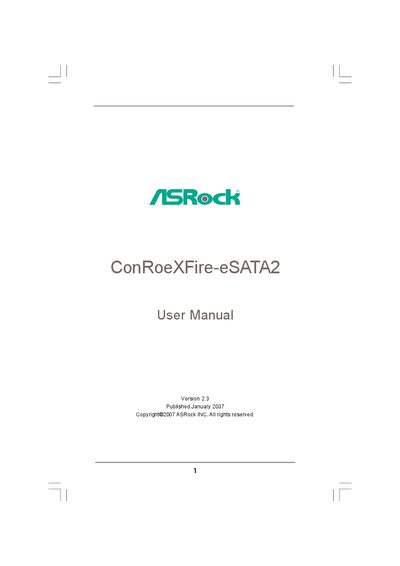

This manual introduces the features and characteristics of ConRoeXFire-eSATA2
This manual introduces the ASRock ConRoeXFire-eSATA2 motherboard, detailing its package contents, specifications, and minimum hardware requirements. It guides users through step‑by‑step hardware installation, including CPU, memory, expansion cards, and SATA/eSATA connections.
The document also covers BIOS configuration, overclocking cautions, and software support via the included Support CD. It lists supported operating systems, driver installation procedures, and provides contact information for further assistance.
| Form Factor | ATX (12.0" x 8.6") |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Northbridge Intel 945P/945G, Southbridge Intel ICH7R |
| Memory Type | Dual‑Channel DDRII, up to 4 GB |
| Maximum Memory Capacity | 4 GB |
| PCI Express Slots | 1 × PCI Express x16, 1 × AGI Express x4, 1 × PCI Express x1 |
| LAN | Gigabit Ethernet (Realtek RTL8111B) |
| SATA Connectors | 4 × SATAII 3.0 Gb/s, 2 × eSATAII (shared) |
| BIOS | 4 Mb AMI BIOS |
It uses an LGA 775 socket for Intel® Dual Core, Core 2 Duo, Pentium D, Pentium 4, and Celeron D processors.
The motherboard provides four SATAII 3.0 Gb/s connectors and two eSATAII ports (shared with two SATAII connectors).
The board is equipped with a 4 Mb AMI BIOS.
It supports Microsoft® Windows® 2000, XP, XP 64‑bit, Vista™ and Vista™ 64‑bit.
