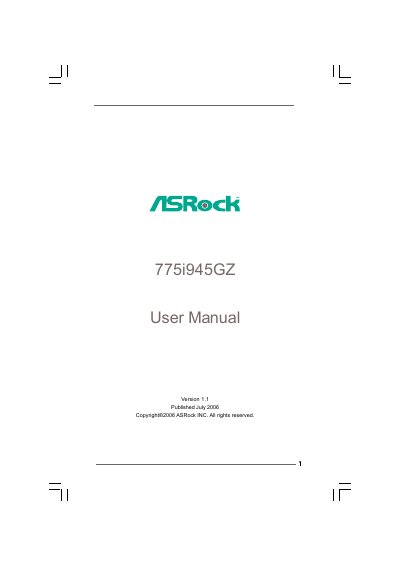

This document is the user manual for ASRock INC. 11111 775i945GZ motherboard, providing specifications and information about the product, as well as the disclaimer and copyright notice from ASRock.
This manual introduces the ASRock 775i945GZ Micro‑ATX motherboard, lists the package contents, and guides users through hardware installation steps such as CPU, memory, and expansion cards. It also covers BIOS configuration, hardware health monitoring, and software support via the included support CD.
Additional sections detail the supported PCI Express VGA cards, minimum hardware requirements for Windows Vista, and contact information for further assistance. The document includes safety cautions, warranty notices, and FCC/CE compliance statements. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | LGA 775 supporting Intel Dual Core Pentium D, Pentium 4, Celeron D, Core2 Duo |
| Chipset | Northbridge Intel 945GZ, Southbridge Intel ICH7 |
| Memory | 2 DDRII DIMM slots, up to 2 GB DDRII‑533 |
| Expansion Slots | 3 PCI slots, 1 AGI Express (PCI‑Express x4), 1 HDMR slot |
| Audio | Realtek ALC888 7.1‑channel codec |
| LAN | Realtek PCI LAN 8101L, 10/100 Mbps, Wake‑On‑LAN |
| SATA Connectors | 4 SATAII 3.0 Gb/s ports (no RAID, no Hot‑Plug) |
| BIOS | 4 MB AMI BIOS, Plug‑and‑Play, ACPI 1.1 compliant |
| Operating System Support | Microsoft Windows 2000, XP, XP 64‑bit, Vista |
| Certifications | FCC, CE, WHQL |
The board supports LGA 775 processors including Intel Dual Core Pentium D, Pentium 4, Celeron D, and Core 2 Duo models.
It provides four SATAII 3.0 Gb/s connectors, but they do not support RAID or Hot‑Plug functions.
The motherboard can hold up to 2 GB of DDRII‑533 memory across its two DIMM slots.
It uses a 4 MB AMI BIOS that supports Plug‑and‑Play, ACPI 1.1 compliance, and includes hardware monitoring features.
