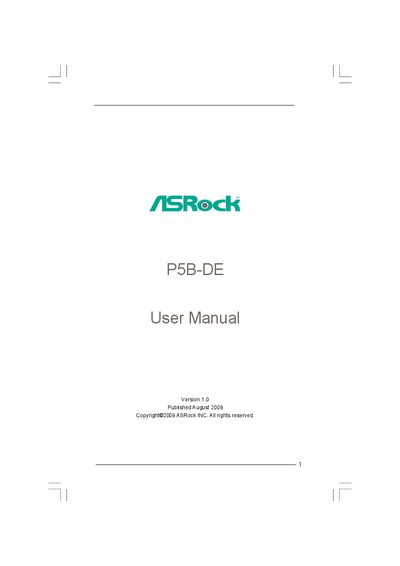

P5B-DE User Manual, introduces the features of the P5B-DE product, including product specifications, installation instructions, and usage instructions
This manual covers everything you need to set up the ASRock P5B-DE motherboard, from unpacking the package and installing the CPU, memory, and storage devices to configuring the BIOS and installing drivers from the Support CD.
It also includes detailed specifications, safety warnings, and troubleshooting tips, plus a quick reference guide for supported operating systems and hardware features.
| Form Factor | ATX (12.0" x 8.0") |
|---|---|
| CPU Socket | LGA 775 |
| Supported Chipset | Northbridge Intel® P965, Southbridge Intel® ICH8 |
| Memory Slots | 4 x DDR2 DIMM |
| Maximum Memory | 8 GB |
| PCI Express Slots | 1 x PCIe x16, 2 x PCIe x1, 3 x PCI |
| SATA Connectors | 4 x SATAII 3.0 Gb/s (no RAID, no Hot‑Plug) |
| Audio Codec | VIA® VT1708S 7.1‑channel HD Audio |
| LAN Controller | Realtek RTL8111DL Gigabit Ethernet |
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, Vista 64‑bit, and Windows 7.
Insert the CD and, if autorun is enabled, the main menu appears; otherwise run ASSETUP.EXE from the BIN folder to view the Drivers and Utilities menus.
