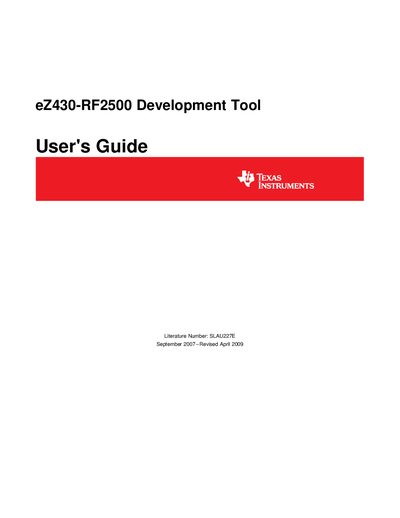

This document is the user guide for the eZ430-RF2500 development tool. It provides an overview of the development tool, kit contents, development methods, specifications, supported devices, UART application, software installation, hardware installation, SimpliciTI network protocol, demo projects, suggested reading, frequently asked questions, schematics, and detailed hardware installation guide.
This guide introduces the eZ430-RF2500, a USB‑based MSP430 wireless development tool that includes the MSP430F2274 microcontroller and a CC2500 2.4‑GHz transceiver. It covers the kit components, target board features, and how to use the IAR Embedded Workbench or Code Composer Essentials IDE for development.
The document provides step‑by‑step hardware installation, software installation, demo applications, and detailed specifications such as available development pins, voltage ranges, and supported devices. Important safety notices and warranty information are also included.
| Development Pins | 21 |
|---|---|
| CPU Performance | 16 MHz |
| Input Voltage Range | 1.8 V to 3.6 V |
The eZ430-RF2500 provides 21 available development pins.
The device should be operated within an input voltage range of 1.8 V to 3.6 V.
