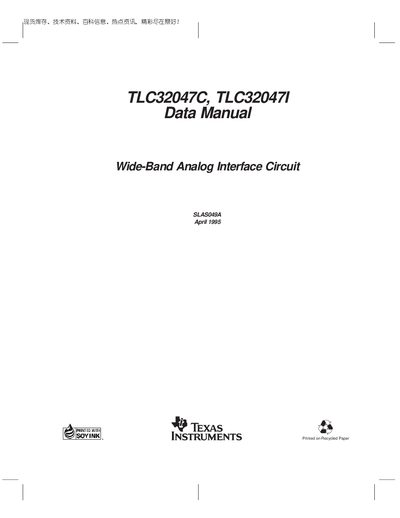

This manual describes the features and characteristics of the TLC32047C and TLC32047I data interface circuits.
The TLC32047C and TLC32047I are wide‑band analog interface circuits described in this data manual. The document provides functional block diagrams, terminal assignments, timing configurations, and detailed specifications for both analog and digital sections.
Key sections include an introduction, features, functional block diagrams, terminal functions, internal timing configuration, analog input and output characteristics, A/D and D/A converter performance, serial port details, and reset and power‑up sequences. Warranty and usage notices are also included.
The manual was published in April 1995.
TI semiconductor products are not designed, intended, authorized, or warranted for use in life‑support devices or other critical applications.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale, according to its standard warranty.
