This file provides the characteristics parameters of the LM2904/LM324 series op amps, such as supply voltage range, input bias current, input offset current, input offset voltage, open-loop gain, etc.

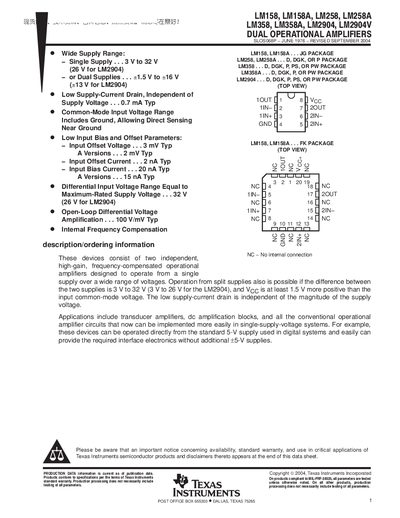

This datasheet provides the electrical characteristics, absolute maximum ratings, ordering information and mechanical data for a family of Texas Instruments dual operational amplifiers. The devices operate from a wide supply range and feature low supply‑current drain, low input offset voltage and low bias currents.
The document also includes packaging options, temperature specifications and an important notice regarding product availability and warranty. All values are typical unless otherwise noted and are measured under the conditions described in the sections.
| Supply Voltage Range (LM158) | 3 V to 32 V |
|---|---|
| Typical Input Offset Voltage (LM158) | 3 mV |
| Typical Input Bias Current (LM158) | 20 nA |
| Operating Temperature Range (LM158) | -55 °C to 125 °C |
| Maximum Rated Supply Voltage | 32 V |
The typical input offset voltage for the LM158 is 3 mV.
The LM158 can operate from 3 V up to 32 V.
The LM158 is rated for temperatures from –55 °C to 125 °C.
