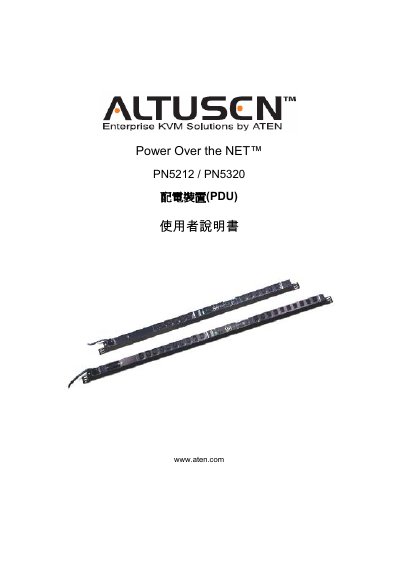

This manual introduces the use of PN5212/PN5320 power distribution unit products, including product features, installation, use, maintenance and other content. Please read this manual carefully and follow the installation and operation procedures to avoid damage to this device or any device connected to the PN5212/PN5320 product.
This manual provides detailed instructions for installing, configuring, and safely operating ATEN's PN5212 and PN5320 power distribution units. It includes safety precautions, wiring diagrams, network settings, and user management features.
The document also contains product specifications, warranty information, and contact details for technical support. It is intended for end‑users and system integrators who need to set up and maintain these PDUs. This manual is written in Japanese.
| Input voltage | 100‑120 V, 50/60 Hz |
|---|---|
| Output power (120 V) | 1920 W |
| Operating temperature | 0‑50 °C |
| Weight | 4.49 kg |
| Dimensions (L×W×H) | 6.42 × 5.46 × 13.4 cm |
The product is covered by a one‑year warranty from the date of purchase.
Ensure the device is connected to a grounded power source, verify that the total current does not exceed the rated current on the unit label, and set the correct current limits before operation.
