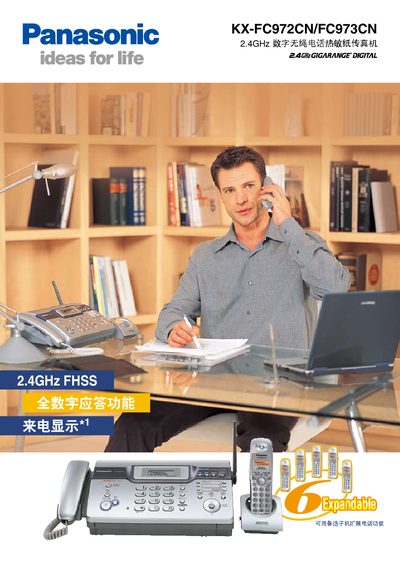

KX-FC972CN/FC973CN is a 2.4GHz digital cordless phone thermal paper fax machine launched by Panasonic. It supports full digital answering function and caller ID, and can choose to use optional sub-machine to expand telephone functions.
This manual describes the Panasonic KX-FC972CN and KX-FC973CN fax machines, which use a 2.4 GHz GIGARANGE wireless link for high‑speed digital communication. It outlines the main unit and sub‑unit functions, including dual‑display LCD, voice‑activated dialing, and secure FHSS encryption.
The guide covers installation, configuration of up to six sub‑units, power requirements, and detailed specifications such as operating frequency, storage capacity, and dimensions. Contact information for Panasonic China and authorized distributors is also provided. This manual is written in Chinese.
| Wireless Band | 2.4 GHz GIGARANGE |
|---|---|
| Operating Frequency | 2.40‑2.48 GHz |
| Maximum Sub‑units Supported | 6 |
| Standby Power Consumption | 2 W |
| Operating Power Consumption | 10 W |
| Main Unit Dimensions (W×H×D) | 348 mm × 224 mm × 121 mm |
The main unit can support up to six sub‑machines.
It operates in the 2.40 GHz to 2.48 GHz band.
The device consumes 2 W in standby mode.
