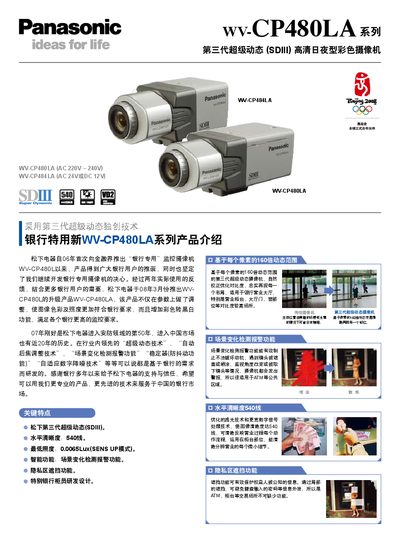

This document introduces the WV-CP480LA series of Panasonic's third-generation Super Dynamic HD day/night color cameras. The series adopts the third-generation Super Dynamic technology, with features such as 160x dynamic range, scene change detection alarm, and horizontal resolution of 540 lines. It is suitable for locations with high contrast, such as banks.
This manual introduces the Panasonic WV-CP480LA series camcorder, highlighting its third‑generation Super Dynamic (SDIN) technology, high horizontal resolution of 540 lines, and low‑light performance down to 0.0065 Lux. It also describes specialized banking functions such as privacy‑zone masking and scene‑change detection.
Detailed specifications cover sensor size, scanning range, video output options, power requirements, environmental limits, and physical dimensions. Installation and operation guidance ensure proper setup for ATM, teller counters, and other secure environments. This manual is written in Chinese.
| Sensor resolution | 752 x 582 pixels |
|---|---|
| Scanning range | 4.8 m (H) x 3.6 m (V) |
| Horizontal resolution | 540 lines (typical) |
| Minimum illumination (color mode) | 0.0065 Lux (SENS UP mode) |
| Operating temperature | -10 °C to +50 °C |
| Dimensions (without lens) | 119 mm × 72 mm × 67 mm |
| Weight (without lens) | ≈440 g |
The camcorder can capture color images at a minimum illumination of 0.0065 Lux in SENS UP mode.
Yes, it includes a privacy‑zone masking feature to protect sensitive information such as keypad entries.
It offers a typical horizontal resolution of 540 lines, with higher and lower modes available.
