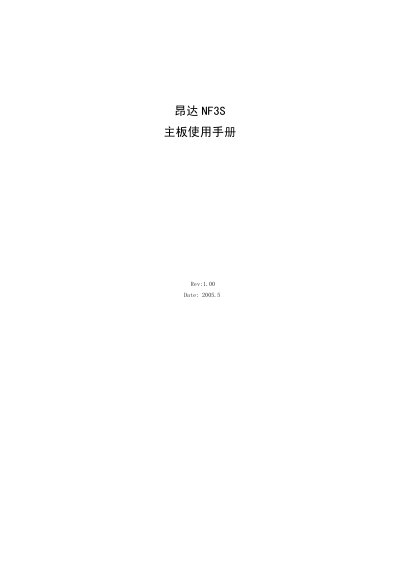

Aonda NF3S motherboard user manual, introduces the motherboard's functions, features, installation steps, BIOS settings and other contents.
This manual covers the Onda NF3S motherboard, based on the NVIDIA nForce3 250 chipset and supporting AMD Socket 754 processors. It includes detailed diagrams, installation steps, BIOS configuration, driver installation, and audio system usage.
The document also lists hardware interfaces such as PCI, AGP, SATA, USB, Ethernet, and AC'97 audio, along with safety notices and troubleshooting tips for end users and system builders. This manual is written in Chinese.
| Chipset | NVIDIA nForce3 250 |
|---|---|
| Supported CPUs | AMD Opteron, Athlon FX, Athlon 64, Sempron (Socket 754) |
| Memory Type | DDR400/333/266/200 SDRAM, up to 2 GB |
| Memory Slots | 2 × 184‑pin DDR DIMM, max 2 GB |
| AGP Slot | 1.5 V AGP 8X |
| PCI Slots | 5 PCI slots + 1 AGP slot |
| SATA Interfaces | 2 Serial‑ATA ports (150 MB/s) |
| Ethernet Controller | RTL8201BL |
| USB Ports | 8 ports (USB 2.0 compatible) |
| Audio | Six‑channel AC'97 |
| Form Factor | ATX |
It supports AMD Opteron, Athlon FX, Athlon 64 and Sempron processors using the Socket 754 package.
The board includes eight USB ports that support USB 2.0 devices and are backward compatible with USB 1.1.
It uses DDR SDRAM (200‑400 MHz) and has two 184‑pin DDR DIMM slots for a maximum of 2 GB of memory.
The board integrates an RTL8201BL Ethernet controller.
