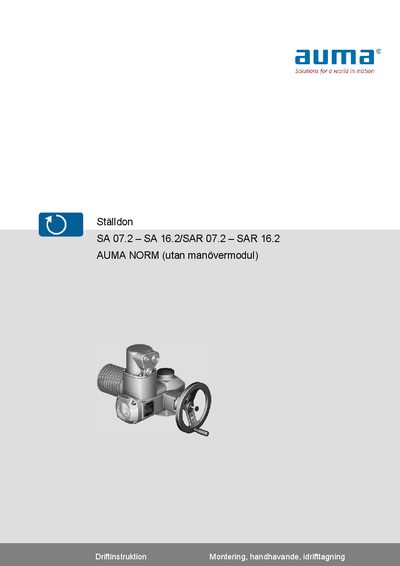

This file is the operation manual of SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 AUMA NORM (without control module), which details the product's usage method, installation method, and safety precautions.
This manual provides safety instructions, identification details, transport, storage and packing guidelines, as well as step‑by‑step procedures for mounting, electrical connection and commissioning of the AUMA SA/SAR series actuators. It also describes manual and motor operation modes, status messages, and troubleshooting steps.
Technical data, spare‑parts list, certification information and contact details for AUMA are included to support long‑term service and repair activities. This manual is written in Swedish.
| Closing torque | 10‑30 Nm |
|---|---|
| Opening torque | 10‑30 Nm |
| Lubrication type | F15 |
| Protection class | IP68 |
| Operating temperature range | -40 °C to +80 °C |
| Maximum speed | 32 1/min |
All personnel must read and follow the safety instructions, use qualified staff, and comply with applicable standards and regulations.
The actuator requires a closing torque of 10‑30 Nm and an opening torque of 10‑30 Nm.
The device is rated IP68 and can operate from –40 °C up to +80 °C.
The maximum speed is 32 1/min.
