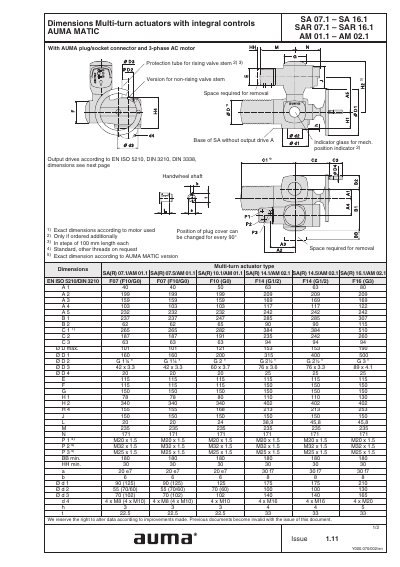

This document provides the dimensions of SA(R) 07.1/AM 01.1, SA(R) 07.5/AM 01.1, SA(R) 10.1/AM 01.1, SA(R) 14.1/AM 02.1, SA(R) 14.5/AM 02.1 and SA(R) 16.1/AM 02.1 multi-turn actuators.
This document provides dimensional data for AUMA multi-turn actuators of types SA 07.1, SA 07.5, SA 10.1, SA 14.1, SA 14.5, and SA 16.1. The specifications cover various connection sizes according to EN ISO 5210 and DIN 3210 standards, including dimensions for the actuator base and stem.
| Max. Force | 40 kN (SA 07.1/07.5/10.1), 70 kN (SA 14.1/14.5), 160 kN (SA 16.1) |
|---|---|
| Weight | 1.1 kg to 11.7 kg |
| Standard | EN ISO 5210, DIN 3210 |
