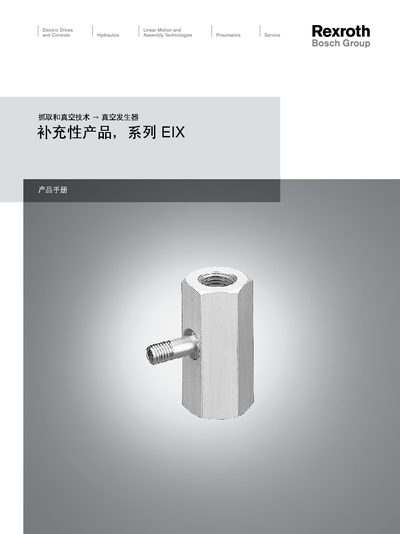

This document is a manual for the supplementary products of the vacuum generator series EIX by Bosch Rexroth AG | Pneumatics. The manual provides detailed information about the products, including material numbers, temperature range, working pressure range, medium, particle size, etc. The products feature an integrated design with aluminum housing and brass nozzles, suitable for compressed air. Different models of the product have different nozzle diameters and suction flow rates.
The document describes the Bosch Rexroth EIX series vacuum generator, a compact pneumatic device for generating vacuum in industrial applications. It lists key technical data such as ambient temperature range, working pressure, particle size limits, and oil content in the supplied air.
Additional sections provide performance curves, installation notes, and worldwide contact details for Bosch Rexroth subsidiaries in China and Germany, ensuring users can obtain support and spare parts.
| Ambient temperature range | +02°C / +509°C |
|---|---|
| Working pressure | 2 bar – 6 bar |
| Maximum particle size in inlet air | 5 µm |
| Oil content in supplied air | 0 mg/m³ – 1 mg/m³ |
The ambient temperature range is specified as +02 °C to +509 °C.
It can operate between 2 bar and 6 bar.
The maximum particle size is 5 µm.
The oil content must be between 0 mg/m³ and 1 mg/m³.
