This product is a magnetic piston rod cylinder with pneumatic cushioning, acid resistance, and can be used in an ambient temperature and medium temperature range of -20°C to +75°C.

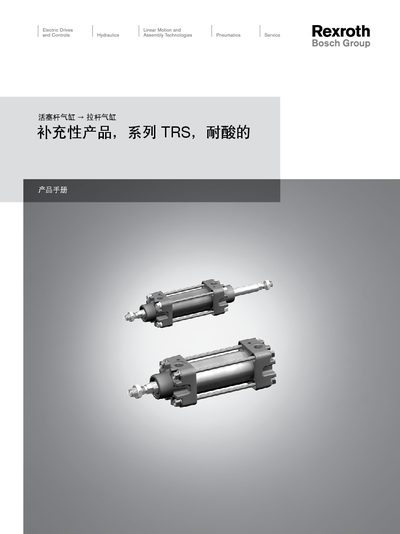

The guide describes the TRS series pull‑pole cylinder, a double‑acting pneumatic cylinder with magnetic piston and adjustable air cushioning, designed for acid‑resistant applications. It includes general product information, technical data, and a list of accessories such as mounting brackets, flanges, and bearing assemblies.
Technical sections cover working pressure ranges, environmental temperature limits, medium specifications, material construction (stainless‑steel, acid‑resistant), sealing material, and recommended oil. Additional notes on pressure dew point, oil content, and ordering information are provided. This manual is written in Chinese.
| Working pressure range | 15 bar – 10 bar |
|---|---|
| Medium | Compressed air |
| Maximum particle size | 50 µm |
| Oil content in compressed air | 0 mg/m³ – 5 mg/m³ |
| Required pressure for piston force determination | 6.3 bar |
| Cylinder body material | Stainless steel, acid‑resistant |
| Piston material | Stainless steel, acid‑resistant |
| Seal material | Acrylate rubber |
The cylinder operates between 15 bar and 10 bar.
All main components such as the cylinder body, piston, and piston rod are made of stainless steel that is acid‑resistant.
The seal material is acrylate rubber.
Only oil approved by Bosch Rexroth may be used.
