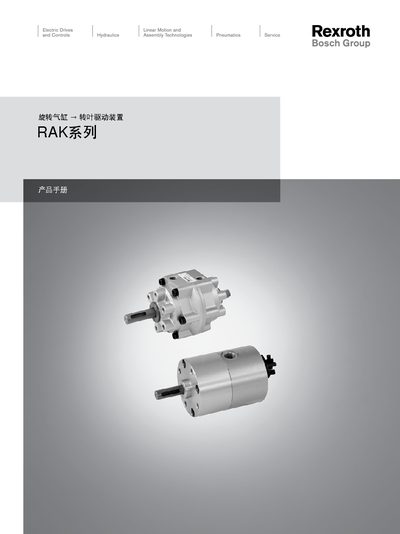

This manual provides information on the rotary cylinder RAK series, including product features, technical data, installation dimensions, and operating instructions.
This manual provides detailed information on the Bosch Rexroth RAK series rotary vane drive units, including their operating ranges, torque capabilities, and dimensional data. It is intended for engineers and service technicians who install, commission, or maintain these pneumatic drive units.
The document also contains contact details for Bosch Rexroth support and legal notices regarding the use of the information provided.
| Operating angle range | 30° – 270° |
|---|---|
| Maximum torque (RAK‑5S) | 4 Nm |
| Energy per stroke (RAK‑5S) | 0.00686 J |
The RAK series operates between 30° and 270°.
The RAK‑5S model can deliver up to 4 Nm of torque.
