The DIR-615 8002.11N Wireless Broadband Router provides 300M wireless transmission speed, supports 802.11b/g devices, and allows you to enjoy high-speed Internet anywhere in your home. This router has parental control features to monitor network activities and supports firewall features to protect your network security.
The DIR-615 is an 802.11n wireless broadband router designed for home networks. It offers up to 300 Mbps wireless speed, dual external 2 dBi antennas, and supports legacy 802.11b/g devices. The manual explains the router’s functions, parental‑control features, and firewall protection.

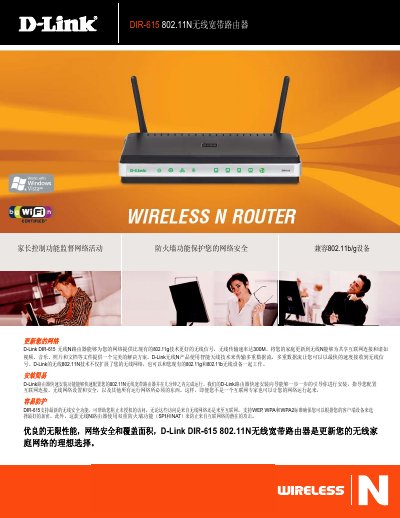

Installation is guided by a quick‑start wizard that walks users through internet connection, wireless settings, and security configuration, including WEP, WPA, WPA2, and WPS. Technical specifications such as ports, power requirements, dimensions, and environmental limits are also detailed. This manual is written in Chinese.
| Wireless standards | IEEE 802.11n (draft), 802.11g, 802.11b |
|---|---|
| LAN ports | 4 x 10/100 |
| WAN port | 1 x 10/100 |
| Dimensions | 193 × 116.8 × 30.5 mm |
| Weight | 940 g (0.7 lb) |
| Antenna | Dual external 2 dBi reverse‑SMA antennas |
| Power input | DC 5 V 2.5 A |
| Maximum wireless output | 19 dBm |
| Encryption | WEP, WPA, WPA2 |
| Firewall | SPI and NAT |
| Storage temperature | -20 °C to 65 °C |
It provides four 10/100 LAN ports.
The router supports WEP, WPA, and WPA2 encryption.
It requires a DC 5 V, 2.5 A power adapter.
