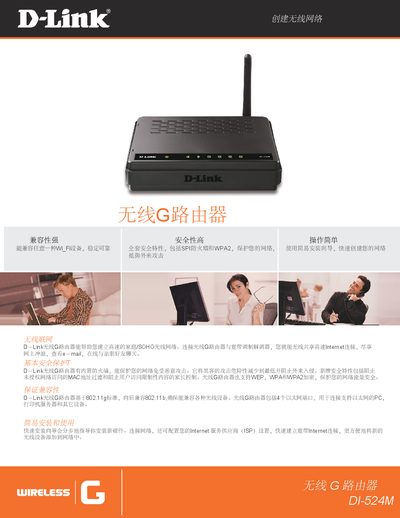

The D-Link Wireless G Router DI-524M is a 802.11g standard wireless router that supports WEP, WPA and WPA2 encryption, has a built-in firewall and security features, and includes 4 Ethernet ports for connecting Ethernet-enabled PCs, printers, servers and other devices.
The manual introduces the D-Link DI-524M Wireless G Router, describing its ability to create a high‑speed home or SOHO wireless network, support for 802.11b/g, four Ethernet ports, and a built‑in firewall with MAC filtering and parental controls.
It provides step‑by‑step installation using the quick installation wizard, explains configuration of ISP settings, and details security features such as WEP, WPA, WPA2 encryption, NAT, and UPnP. This manual is written in Chinese.
| Wireless frequency range | 2.4 GHz – 2.483 GHz |
|---|---|
| Antenna type | Detachable antenna (Reverse SMA plug) |
| Power supply | 5 V DC, 1 A |
| Dimensions | 171.3 mm × 14.75 mm × 3.15 mm |
| Operating temperature | 10 °C to 40 °C |
| Storage temperature | -20 °C to 65 °C |
It includes four Ethernet ports.
The router supports WEP, WPA, and WPA2 encryption.
It is based on the 802.11b/g standard and is backward compatible with 802.11b.
Use the quick installation wizard that guides you step‑by‑step through hardware and network setup.
