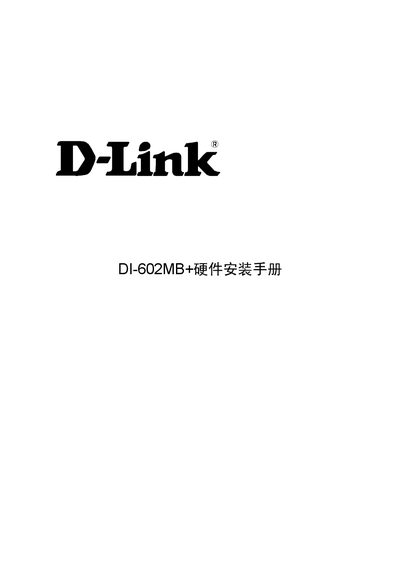

This manual mainly introduces the hardware installation method and related precautions of DI-602MB+ router, including the preparation before installation, installation of DI-602MB+ router, connection of interfaces, hardware fault analysis and other contents.
The DI-602MB+ router is a compact device equipped with a monitoring port, two WAN ports, three LAN ports, and a power switch. Its hardware specifications include a MPC8245 CPU, 8 MB flash, 128 MB SDRAM, and a 5‑port 10/100 Mbps Ethernet interface. The manual lists dimensions, operating temperature ranges, and power requirements.
The installation guide covers preparation steps, required tools, safety warnings, and detailed procedures for mounting the router on a desk or rack, connecting cables, and performing post‑installation checks. It also includes a hardware fault analysis section with LED indicator descriptions and troubleshooting tips for power, port, and cable issues. This manual is written in Chinese.
| CPU | MPC8245 |
|---|---|
| Flash Memory | 8 M Bytes |
| SDRAM | 128 Mbytes |
| Dimensions | 445 mm × 220 mm × 44 mm |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -20 °C – 65 °C |
| Input Voltage (AC) | 100 V – 240 V |
| Input Frequency | 47 Hz – 63 Hz |
| Input Current (AC) | 1 A / 230 V |
| Power Consumption (max) | 13 W |
| DC Input Voltage | -72 V – -36 V |
| DC Input Current | 0.5 A |
