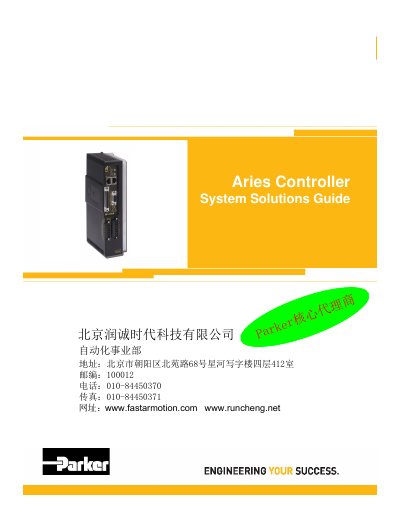

This document introduces the Aries controller system solutions guide, mainly including the features, functions, configuration introduction, FAQs, Xpress HMI configuration, rotary motor selection, linear motor selection, Parker mechanics selection and other contents.
The Aries Controller System Solutions Guide provides an overview of the Aries Controller features, part numbers, and configuration options. It includes sections on wiring, encoder selection, motor wiring, and integration with Parker mechanics and Xpress HMI software.
The document also contains a FAQ section covering programming language, development tools, IP addressing, feedback options, and upcoming features such as Ethernet/IP support and higher‑power versions.
| Onboard inputs | 7 (4 standard, 3 high speed) |
|---|---|
| Onboard outputs | 4 |
| Ethernet hub | Integrated 2‑port |
| Continuous current options | 3 A, 4.5 A, 6.3 A RMS |
| Power input | 120/240 VAC |
| Supported feedback types | Smart encoder, quadrature encoder, Heidenhain EnDat absolute encoder |
| Maximum power rating | 1300 W (6.3 A RMS) |
The Aries Controller is programmed in the AcroBASIC language used for the ACR family of controllers.
The IP address can be assigned via hardware switches on the front panel, programmed by the user, or obtained dynamically from a DHCP server.
It supports smart encoders, quadrature rotary and linear encoders, and Heidenhain EnDat absolute encoders.
