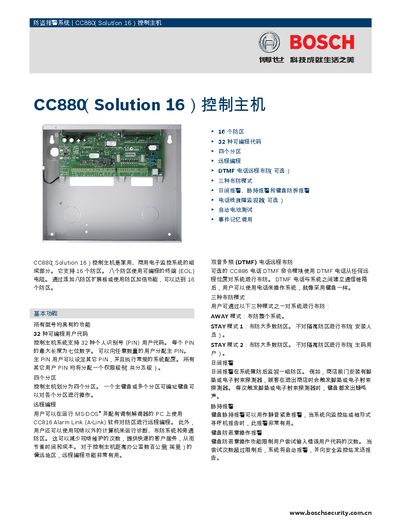

This manual describes the basic functions of the CC880 Solution 16 control master, including support for up to 16 alarm zones, four programmable zones, and remote programming via MS‑DOS PCs. It explains the three arming modes (AWAY, STAY 1, STAY 2), automatic battery testing, event recording and playback, and zone expansion options.
Technical specifications such as dimensions, weight, operating voltage, current consumption, temperature and humidity ranges, and battery requirements are listed, along with hardware accessories and compatibility information for related modules and remote devices. This manual is written in Chinese.
| Dimensions | 30.6 mm × 26.2 mm × 8.4 mm |
|---|---|
| Weight | 2.5 kg |
| Supply Voltage | 240 VAC to 18 VAC, 1.3 A |
| Standby Current | 65 mA |
| Operating Temperature | 0 °C to +45 °C (32 °F to 113 °F) |
| Relative Humidity | 10 % to 95 % |
| Battery | 12 V DC, 7 Ah sealed lead‑acid |
The system offers AWAY mode (arms the whole system), STAY 1 and STAY 2 modes (arm most zones while leaving selected zones unarmed).
The standby current consumption is 65 mA.
The device operates from 0 °C to +45 °C (32 °F to 113 °F).
