The VP-RS2BLNX is a protocol converter that allows remotely accessible cameras to be integrated into existing RS-232 or RS-485 infrastructures for control and configuration. When connected to Bilinx-enabled Bosch cameras, the VP-RS2BLNX converts RS-232 or RS-485 messages into Bilinx communication data. This allows users to control Bilinx-enabled Bosch cameras directly from a computer, digital recorder or video management system. The VP-RS2BLNX is suitable for Dinion, DinionXF and all AutoDome cameras enabled with Bilinx. Typical applications include traffic management systems and video content analysis systems. In these systems, the performance of the camera must be optimised during operation.
The VP‑RS2BLNX is a protocol converter that bridges RS‑232 or RS‑485 infrastructure to the Bilinx communication protocol used by Bosch security cameras. It enables direct control of compatible cameras such as Dinion, DinionXF and all AutoDome models with Bilinx functionality from computers, DVRs or video‑management systems.

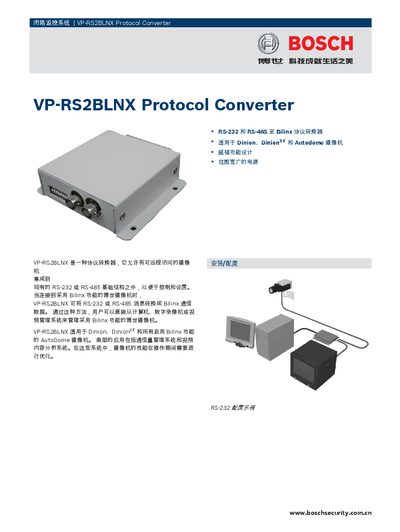

The manual includes installation and configuration examples for both RS‑232 and RS‑485, detailed electrical and environmental specifications, and ordering/contact information for Bosch Security in China and Hong Kong. This manual is written in Chinese.
| Power Input (AC) | 12‑28 VAC (50/60 Hz) |
|---|---|
| Power Input (DC) | 12‑40 VDC |
| Temperature Range | -20 °C to +50 °C |
| Dimensions (L×W×H) | 88.5 × 100 × 28 mm |
| RS‑485 Baud Rate | 9600 baud |
| RS‑232 Baud Rate (optional) | 9600 or 4800 baud |
| Video Connector | BNC (1 Vpp standard, 2 Vpp max) |
It works with Dinion, DinionXF and all AutoDome cameras that have the Bilinx function.
The device can be powered from 12‑28 VAC (50/60 Hz) or from 12‑40 VDC.
Up to 64 transceivers may be connected on one RS‑485 bus.
The RS‑485 interface operates at 9600 baud.
