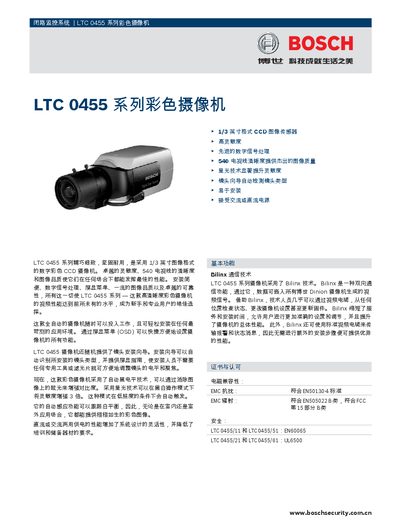

The LTC 0455 series color cameras are digital color CCD cameras with a 1/3-inch image format. They have excellent sensitivity and image quality, making them suitable for any occasion. They are easy to install and feature digital signal processing, on-screen display menus, and superior reliability, making them an excellent choice for both beginners and professionals.
The LTC0455 series is a rugged 1/3‑inch CCD color camcorder offering high‑definition video with 540 line resolution and advanced features such as Bilinx two‑way communication and automatic white‑balance. It supports PAL and NTSC formats and includes multiple power options for flexible installation.
The manual details accessory lists, safety standards, mechanical dimensions, and step‑by‑step installation procedures, including wiring diagrams for video output (BNC, EIAJ) and power connections. It also outlines operating temperature ranges, humidity limits, and environmental specifications. This manual is written in Chinese.
| Image sensor size | 1/3 inch CCD |
|---|---|
| Resolution (PAL) | 752 x 582 |
| Resolution (NTSC) | 768 x 494 |
| Power consumption | 4 W |
| Operating temperature | -20 °C to 50 °C |
| Weight | 0.45 kg |
| Sensitivity (color mode, PAL) | 0.30 lux |
| Sensitivity (color mode, NTSC) | 0.65 lux |
The camcorder can be powered by 12 VDC / 24 VAC for PAL models, 12 VDC / 24 VAC for NTSC models, and also 230 VAC or 120 VAC variants for other models.
It uses a 1/3‑inch CCD image sensor.
The device operates from –20 °C to 50 °C.
