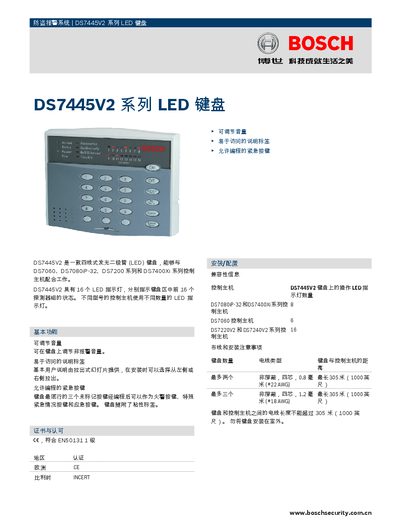

The DS7445V2 is a four-wire LED keypad that is compatible with the DS7060, DS7080iP-32, DS7200 series, and DS7400Xi series control panels. The DS7445V2 features 16 LED indicators, which display the status of the first 16 detector groups in the keypad zone. Different control panel models use different numbers of LED indicators.
The DS7445V2 series LED keyboard is a four‑wire LED device with 16 indicator lights that show the status of the first 16 detector groups. It offers adjustable volume, easy‑access label slides, and three programmable emergency keys that can be set for fire alarm, special emergency, or rescue functions.
The manual details compatibility with various control hosts, wiring requirements (up to 305 m / 1000 ft, non‑shielded four‑core cable), environmental limits, and ordering options for different regional versions. Technical specifications such as operating voltage, dimensions, weight, and current consumption are also listed. This manual is written in Chinese.
| Operating voltage | 12 V DC |
|---|---|
| Dimensions | 12 × 21 × 2 cm |
| Weight | 439 g (15.5 oz) |
| Current consumption (idle) | 95 mA |
| Current consumption (max) | 200 mA |
| Maximum wiring length | 305 m (1000 ft) |
It has 16 LED indicators, each showing the status of one of the first 16 detector groups.
The wiring length may not exceed 305 meters (1000 feet).
Yes, the three unmarked bottom keys can be programmed as fire alarm, special emergency, and rescue keys.
The keyboard operates on a 12 V DC power supply.
