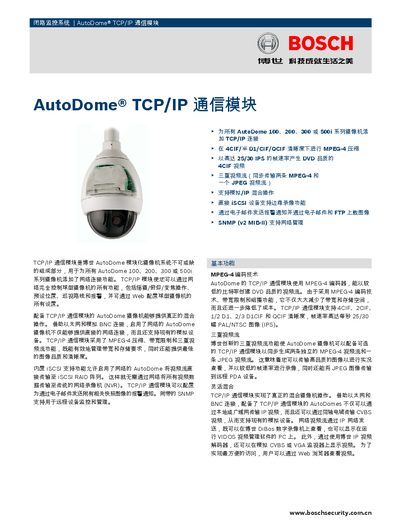

The Bosch AutoDome® TCP/IP Communication Module is a network connectivity device for the Bosch AutoDome modular camera system that adds network connectivity to all AutoDome 100, 200, 300 or 500i series cameras.
This manual describes the AutoDome TCP/IP communication module, a component that adds Ethernet connectivity to Bosch AutoDome 100, 200, 300 and 500i series cameras. It details basic functions such as MPEG‑4 video encoding, three‑stream video output, and hybrid operation with both IP and BNC connections.
The document also covers configuration options, including a built‑in web server for remote setup, iSCSI support for direct video storage to RAID, SNMP v3 for network management, and audio input capabilities. Technical specifications such as supported video resolutions, data rates, network interfaces, power consumption and environmental compliance are provided. This manual is written in Chinese.
| Video data rate | 9.6 Kbps – 6 Mbps |
|---|---|
| Video resolution (4CIF) | 704x576/480 at 25/30 IPS |
| Frame rate | 1–25/30 IPS (PAL/NTSC) |
| Power consumption | 4 W (excluding camera) |
| Weight | ≈0.17 kg (0.37 lb) |
| Audio input impedance | 9 kΩ (typical), max 5.5 Vpp |
| SNMP version support | v3 |
| Supported video resolutions | 4CIF, 2CIF, 1/2 D1, 2/3 D1CIF, QCIF |
It supports 4CIF, 2CIF, 1/2 D1, 2/3 D1CIF and QCIF resolutions.
Configuration is done through a built‑in web server that can be accessed with standard browsers such as Internet Explorer.
Yes, the module includes built‑in iSCSI support to stream video directly to an iSCSI RAID array.
The module fully supports SNMP version 3 for remote management.
