Eazeo color and black digital cameras are innovative products carefully crafted by Bosch, with excellent sensitivity and image quality, suitable for security surveillance applications. The cameras are equipped with advanced features such as video motion detection and adjustable field of view.

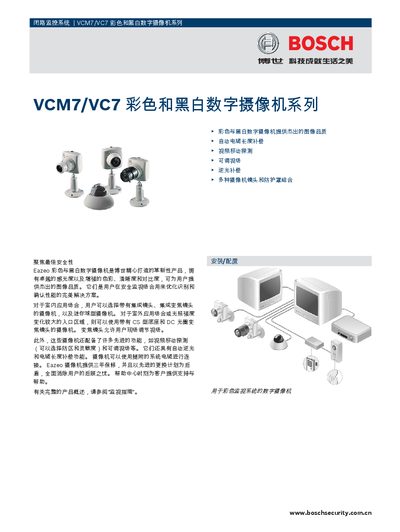

The VCM7/VC7 series from Bosch offers both color and black‑white digital camcorders designed for indoor and outdoor security monitoring. Features include excellent image quality, automatic cable‑length compensation, video motion detection, adjustable field of view, and back‑light compensation, with a range of lens and protective‑cover configurations.
Technical specifications cover sensor type, pixel resolution, light sensitivity, power requirements, connector type, lens options, physical dimensions, weight, and environmental operating limits. Ordering information and compatible accessories such as switching panels and multiplexers are also provided. This manual is written in Chinese.
| Sensor | 1/4 inch color CCD or black‑white CCD |
|---|---|
| Pixel count | 500 × 582 (PAL), 510 × 492 (NTSC) |
| Color light sensitivity | < 2 lux |
| Black‑white light sensitivity | < 0.2 lux |
| Input voltage | 24 VDC |
| Connector | 4‑pin RJ11E (video, audio, power, communication) |
| Weight | ≈ 0.25 kg (0.55 lb) for most models |
| Dimensions (example model) | 74 × 70 × 65 mm (2.9 × 2.8 × 2.6 in) |
| Operating temperature range | -10 °C to 45 °C |
The camera needs less than 2 lux for color mode.
It uses a 4‑pin RJ11E connector.
It operates from –10 °C up to 45 °C.
