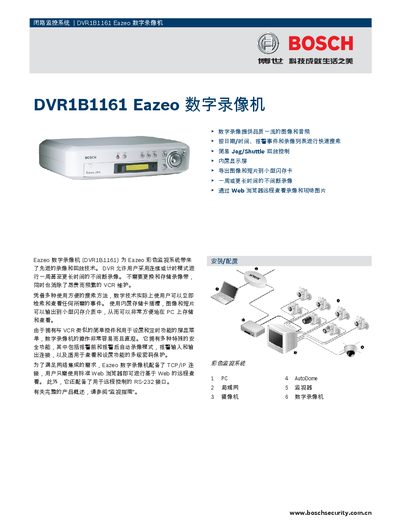

The DVR1B1161 Eazeo Digital Recorder brings advanced recording and playback technology to the Eazeo Color Surveillance System. The DVR allows users to perform continuous or timed recording for up to one week or longer. There is no need to change and store recording tapes, and expensive and frequent VCR maintenance is eliminated. With a variety of convenient search methods, digital technology virtually enables users to retrieve and view any desired event instantly. With the built-in storage card slot, images and clips can be output to small flash media, making it very convenient to store and view on PCs. Equipped with simple controls similar to VCRs and an on-screen menu for setting and timing functions, the digital recorder is very easy and intuitive to operate. It offers a variety of special security features including automatic recording modes before and after alarms, alarm input and output connections, and multi-level password protection. To meet the needs of network integration, the Eazeo Digital Recorder is equipped with TCP/IP connection and users can perform Web-based remote viewing using a standard Web browser. In addition, it has an RS-232 interface for remote control.
The DVR1B1161 Eazeo Digital VCR offers high‑quality image and audio recording with features such as date/time search, alarm‑event search, and easy jog/shuttle playback control. It includes a built‑in display, USB flash‑card export, and remote viewing via a standard web browser.
Technical specifications cover video inputs, formats, compression, audio I/O, alarm interfaces, storage capacity, power requirements, dimensions, and network connectivity, enabling both standalone and network‑integrated surveillance setups. This manual is written in Chinese.
| Camera inputs | 1 BNC |
|---|---|
| Video inputs | 1 BNC |
| Video format | PAL, NTSC |
| Video compression | M‑JPEG |
| Video resolution | 720 × 576 (PAL) |
| Audio inputs | 2 mono mic, 1.6 Vpp |
| Audio outputs | 2 mono speaker, 1.6 Vpp |
| Alarm output | 24 VDC/2 A max |
| Hard‑disk capacity | 160 GB |
| Recording modes | Continuous, scheduled, event |
| Power supply | 100‑240 VAC, 50/60 Hz |
| Dimensions | 346 × 88 × 269 mm |
| Weight | 5.2 kg |
| Operating temperature | +0 °C to +40 °C |
You can use a standard web browser to access the DVR over TCP/IP Ethernet for remote viewing.
The DVR supports both PAL and NTSC video formats.
The device includes a 160 GB hard‑disk for video storage.
Yes, it provides an alarm input and a 24 VDC/2 A alarm output.
